Shared power bank API integration is an important consideration for operators developing their own rental software. Beyond selecting reliable charging stations, businesses need to ensure that their backend can communicate with rental hardware, control power bank release, and process return events.

Some operators prefer a ready-to

use rental platform. Others have their own software development teams and want to build an independent system that they can control and expand over time.

This shared power bank API integration case study explains how VOLINKS supported Midnight Measure, a US-based customer preparing to establish a power bank rental network in Washington State.

The project demonstrates how independently developed software can be connected to shared power bank rental hardware through technical documentation, communication protocols, and remote engineering support.

1. Project Background: An Independent Power Bank Rental Network in the USA

Midnight Measure approached the project with plans to develop a shared power bank rental business in the United States.

The initial concept involved using rental stations with a supplier-provided software platform. However, the customer also had an internal technical team and intended to develop its own operating system as the business expanded.

After discussing the available integration options, the project moved toward an independent software architecture from the beginning.

The main technical objectives were:

• Connect rental station hardware to the customer's own software platform.

• Enable software-controlled power bank release and return reporting.

• Maintain control over the operator's server environment and database.

• Support future integration with the customer's preferred payment services.

• Prepare the hardware for customized branding and future network expansion.

The goal was not simply to purchase charging equipment. It was to establish a technical foundation for an independently operated rental network.

2. Why Independent Software Matters for Shared Power Bank Operators

A shared power bank rental business typically involves several connected systems:

• Customer-facing rental interface

• Payment processing

• Rental order management

• Charging station communication

• Power bank inventory tracking

• Return and rental completion reporting

• Operator administration dashboard

When these functions depend entirely on a supplier's proprietary platform, the operator may have limited flexibility to modify workflows or integrate additional services.

An independent software platform offers a different approach.

The operator can design its own customer experience, establish its own backend infrastructure, and select payment providers based on local business requirements.

It can also define rental pricing, customer policies, operating reports, and integration requirements.

However, independent software development requires technical resources. The operator must take responsibility for application development, server management, database security, payment integration, and ongoing maintenance.

For Midnight Measure, having an internal development team made this approach practical.

VOLINKS focused on supporting the hardware integration component of the project.

3. Shared Power Bank API Integration Architecture

A shared power bank rental system needs a reliable communication process between the shared power bank software platform and physical rental stations.

In an independently developed system, the general architecture can be represented as follows:

Customer Interface → Operator Backend → Station Communication Interface → Rental Station → Power Bank

The return process follows the opposite direction:

Power Bank Returned → Station Detects Return → Backend Receives Status → Rental Order Updated

Payment processing operates through the operator's chosen payment architecture and must be coordinated with the rental workflow.

3.1 Customer Interface

The customer-facing interface may be a mobile application or a browser-based rental page.

Depending on the implementation, customers can scan a QR code, view rental terms, authorize payment, and initiate a rental request.

The interface communicates with the operator's backend rather than directly controlling the station hardware.

3.2 Operator Backend

The backend coordinates the rental process.

Typical responsibilities include:

• Customer and rental order management

• Payment status verification

• Station identification

• Rental authorization

• Power bank release commands

• Rental duration calculation

• Return confirmation

• Transaction and equipment records

The backend should validate the rental request before issuing a command to release a power bank.

3.3 Station Communication Interface

The communication interface connects the operator's software with the rental station.

Depending on the hardware model and integration arrangement, this may involve documented device communication protocols, API endpoints, command messages, and station status reports.

The software must correctly identify the target station and understand the device's command and response structure.

This interface is one of the most important parts of a successful shared power bank API integration.

3.4 Rental Station Hardware

The rental station receives commands through its supported communication connection.

When a valid release command is processed, the station attempts to eject a power bank from an available slot.

The system then needs to handle the device response, update the rental record, and maintain consistency between the physical equipment and software database.

A reliable integration should also consider unsuccessful ejection attempts, communication interruptions, and repeated commands.

4. Hardware Communication Functions Required for Integration

Before connecting rental hardware to independent software, developers need to understand which commands and status messages are available.

The following functions are commonly relevant to shared power bank rental station integration.

Station Identification and Online Status

Each station requires a unique device identity.

The backend uses this identity to associate the hardware with the correct location, operator account, and rental records.

Online status monitoring helps operators identify whether a station is communicating normally.

Power Bank Release Control

The backend sends an authorized release instruction to the station.

The integration needs to distinguish between a command being received, a command being processed, and a power bank actually being released.

These events should not automatically be treated as identical.

Slot Status Monitoring

Rental stations contain multiple power bank slots.

Slot-level information helps the software understand which positions are occupied, available, or experiencing an operational issue.

Accurate slot mapping is important during initial integration and testing.

Power Bank Identification

Individual power banks may have unique identifiers.

These identifiers help associate a particular power bank with a rental transaction and support inventory management.

Power Bank Return Reporting

When a customer returns a power bank, the station must detect the event and report the relevant information to the backend.

The backend can then update the rental record and apply the operator's rental and payment rules.

Remote Device Management

Depending on the station model and enabled communication functions, remote management may include status checks, diagnostic commands, device restarts, and firmware management.

The exact capabilities should always be confirmed for the selected hardware and firmware version.

5. How Midnight Measure Completed Remote Hardware Integration

One of the most important stages of the Midnight Measure project was the transition from software development to actual hardware communication.

The customer developed the initial version of its independent rental software in approximately one week.

During this period, the development team worked on the basic backend functions required to communicate with the rental equipment.

VOLINKS engineers provided technical guidance and supported the integration process.

Step 1: Technical Documentation Review

The customer reviewed the relevant hardware communication information and integration requirements.

This helped the development team understand how software commands should interact with the station.

Step 2: Backend Communication Development

The customer's developers implemented the initial communication logic within their own software environment.

The objective was to establish a working connection between the backend and rental station hardware.

Step 3: Remote Station Testing

With remote support from VOLINKS engineers, the customer performed initial hardware integration tests.

The testing process included station control and verification of power bank release and return-related functions.

Step 4: Integration Verification

The development team and VOLINKS engineers reviewed the test results and confirmed that the initial communication workflow was functioning.

The remote integration testing was completed in approximately one day.

This was an initial integration milestone, not the completion of an entire commercial software platform.

Further development, payment configuration, operational testing, and production deployment remain separate stages of a complete rental network project.

6. Technical Considerations for Independent Rental Software

The Midnight Measure project highlights several technical considerations for operators planning to develop their own platforms.

Command Reliability

A backend should not assume that every command results in a successful physical action.

Command responses, device events, and rental order updates should be handled carefully.

Timeouts and unsuccessful release attempts require defined recovery procedures.

Network Connectivity

Rental stations commonly use mobile data or other supported network connections.

Operators should verify communication module compatibility, SIM card requirements, network configuration, and supported frequency bands for the destination country.

For a US deployment, the exact module configuration must be checked against the intended mobile network.

Payment and Rental Workflow

Payment authorization and hardware release should be coordinated.

A typical rental workflow may involve confirming payment authorization before issuing a release command and calculating the final rental charge according to the agreed rental terms.

The operator's software must also account for payment failures, incomplete rentals, refunds, and non-return policies.

The precise implementation depends on the selected payment provider and applicable requirements.

Database and Transaction Consistency

A rental system should maintain accurate records of station identity, power bank identity, rental status, and return events.

Software developers should plan how to handle delayed messages, duplicate events, interrupted connections, and unexpected device states.

Security and Access Control

Independent operation provides flexibility, but it also introduces responsibility.

Operators should implement appropriate authentication, access controls, encrypted communications where supported, secure payment handling, and protection of customer information.

Using an independent server does not automatically guarantee regulatory compliance; security and privacy requirements must be addressed through the complete system design.

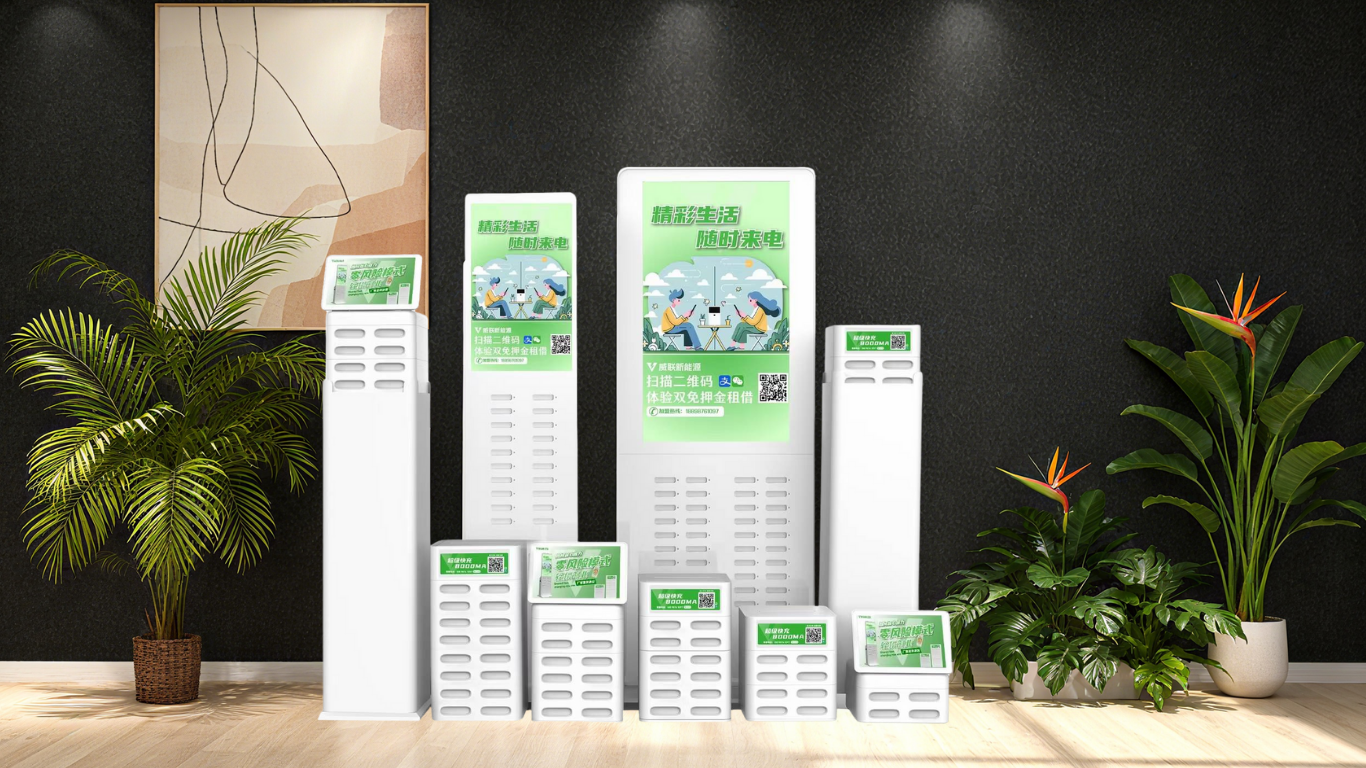

7. OEM Power Bank Rental Hardware and Branding Preparation

After the initial remote integration was successful, Midnight Measure moved forward with its hardware order and branding preparations.

VOLINKS provided the relevant product drawings and customization information so the customer could prepare its visual identity.

The project included coordination around the appearance of the rental equipment and branding materials.

For independent rental operators, OEM and ODM capabilities are useful because the physical equipment and customer-facing software should present a consistent brand experience.

Depending on the selected product and customization scope, options may include:

• Rental station logo placement

• Power bank branding

• Equipment color customization

• Printed labels and packaging

• Screen interface or advertising content for supported models

• Hardware configuration adjustments

Customization requirements should be confirmed before production, particularly when they affect enclosure design, labels, or electronic components.

8. Preparing for Deployment in Washington State

Midnight Measure's planned deployment focuses on commercial locations in Washington State, including hospitality and entertainment environments.

Potential locations discussed for the network include restaurants, cafés, bars, sports venues, and music venues.

At the time of this case study, the project had completed initial software and hardware integration testing and progressed through order and production preparation.

The customer also used technical product documentation supplied by VOLINKS for discussions and review with relevant local parties.

This should not be interpreted as confirmation that commercial installations or regulatory approvals have already been completed.

For future deployment, the operator will need to coordinate site selection, equipment installation, connectivity, payment operation, and ongoing maintenance.

9. What This Project Demonstrates for B2B Operators

The Midnight Measure project provides a practical example of how a hardware manufacturer and an independent software development team can collaborate.

Three lessons are especially relevant.

First, hardware compatibility should be evaluated before committing to a software architecture.

Operators planning to use their own backend should confirm the available communication documentation and supported device functions early in the project.

Second, remote integration testing can reduce uncertainty before larger-scale deployment.

Testing station commands, slot behavior, and return reporting helps identify technical issues before the operator expands the network.

Third, software independence and reliable hardware support should work together.

Independent software gives operators control over their application and business logic, while responsive hardware engineering support helps make physical device integration more manageable.

A successful project requires both sides to cooperate.

10. Shared Power Bank API Integration: Frequently Asked Questions

Can a shared power bank rental station connect to my own backend?

Yes, supported VOLINKS rental station models can be integrated with independently developed software through the applicable communication interface and technical documentation. Compatibility and available functions should be confirmed for the selected model and firmware.

Do I need to use the manufacturer's mobile app?

Not necessarily. Operators with development resources may choose to build their own customer interface and backend. VOLINKS also offers software solutions for businesses that prefer a ready-to-use system.

Can I use my own payment provider?

An independent backend can be designed around a chosen payment provider, subject to that provider's technical requirements. Payment integration and hardware command integration are separate components that must be coordinated in the rental workflow.

Can customers return a power bank to another station?

Cross-station return can be supported when the selected hardware, network configuration, and software platform are designed to handle shared inventory and return events across locations.

How long does shared power bank API integration take?

The timeline depends on the customer's development team, software architecture, hardware functions, and testing requirements. In the Midnight Measure project, initial remote hardware integration testing was completed in approximately one day after the customer had developed its basic software.

Can VOLINKS provide API documentation before a hardware order?

Technical documentation availability, evaluation arrangements, and test access can be discussed with the VOLINKS team based on the proposed project and hardware configuration.

11. Build an Independent Shared Power Bank Network with VOLINKS

VOLINKS supports B2B operators, rental network developers, and equipment distributors seeking shared power bank hardware and software integration solutions.

Our capabilities include rental station manufacturing, OEM/ODM customization, hardware communication support, independent platform integration, and engineering assistance.

Whether you are developing a new rental platform or connecting existing software to shared power bank hardware, defining the integration architecture early can make future deployment and expansion more manageable.

Contact VOLINKS to discuss your hardware requirements, communication protocol needs, software architecture, and project deployment plans.

Website: https://volinks.com/

For more background on this project, read the original customer collaboration story published by VSCHARGE:

https://www.vscharge.com/midnight-measure-power-bank-rental-case-study/
